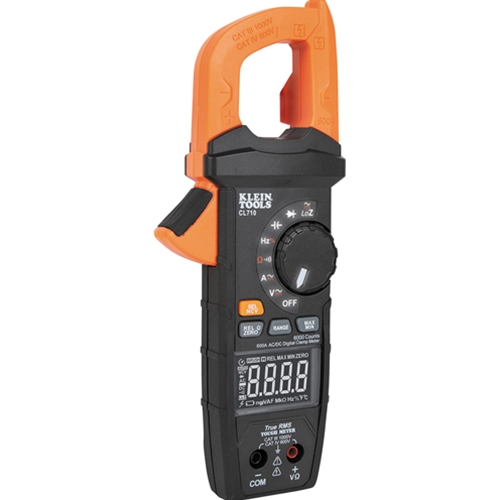

Klein 600A AC/DC Auto-Ranging Digital Pro Clamp Meter CL710

Klein Tools CL710 Clamp Meter delivers accurate measurements across AC/DC current, voltage, resistance, continuity, frequency, and capacitance, all with True RMS precision. It features diode testing and a Low Impedance (LoZ) mode to eliminate ghost voltages. The clamp features NCV detection with escalating audio-visual alerts the closer to the voltage source. The transflective reverse-contrast display and lighted dial ensure visibility in any lighting; a reliable tool for diverse applications.

• Clamp meter with True RMS provides accurate and reliable measurements across various applications
• Measures AC/DC voltage, AC/DC current, resistance, diode test, continuity, capacitance, and frequency/duty cycle
• Transflective reverse-contrast display provides excellent visibility in both sunlight and dark environments
• Illuminated dial ensures clear visibility and easy reading, even in low-light environments
• Features a low impedance (LoZ) mode to identify and eliminate ghost voltages, preventing false readings and ensuring more accurate measurements
• Non-contact voltage detection is integrated into the clamp jaw, with audible and visual indicators that intensify as the clamp moves closer to the voltage source
• Durable Clamp Meter is rated IP40 for ingress protection and withstands drops up to 6.6 feet (2 m)
• Includes right-angle input test leads, thermocouple, storage pouch, instruction manual, and 3 x AAA batteries
• Ergonomic design and overmold provide a comfortable grip, with easy dial adjustment using the thumb
• Clamp body includes a side-mounted test lead holder and a back mount that accommodates an optional magnetic hanger (Cat. Nos. 69445 or 69417, both sold separately) for hands-free operation

• Special Features: Transflective Reverse-Contract Display; Lighted Dial; Built-in Lead Holder
• Material: ABS/Electronics
• Batteries: 3 x AAA
• Auto-Power Off: Yes
• Jaw Size: 1.4" (3.6 cm)
• Drop Protection: 6.6' (2 m)
• Display: Transflective Reverse-Contrast with 6000 Count LCD
• Display Size: 1.5" x 1.0" (3.83 x 2.6 cm)
• Functions: AC/DC Voltage, AC/DC Current, Resistance, Audible Continuity, Low Impedance, Non-Contact Voltage Testing, Diode Test, Capacitance, Frequency/Duty Cycle, Min/Max Value, Rel/Zero, Data Hold Capability
• Auto Ranging: Yes
• TRMS: Yes
• Voltage: 1000V AC; 1000V DC
• Frequency: 1Hz - 500 KHz
• Current: 600A
• Capacitance: 6000µF
• Ohms (Resistance): 60MΩ
• AC Voltage: 1000V
• DC Voltage: 1000V
• DC Polarity Indicator: Yes
• DC Micro-Amp: No
• Ingress Protection: IP40
• Standard: CAT IV 600V, CAT III 1000V, Class 2, Double Insulation, CE, UKCA
• Included: Clamp Meter; Right-Angle Input Test Leads; Storage Pouch; Instruction Manual; and 3 x AAA Batteries
• Overall Length: 9.06" (2.30 cm)
• Overall Height: 1.65" (4.2 cm)
• Overall Width: 3.47" (8.8 cm)
• Weight: 13 oz (369 g) Including Batteries
• UPC: 092644694493

Replacement for the Klein CL600.
